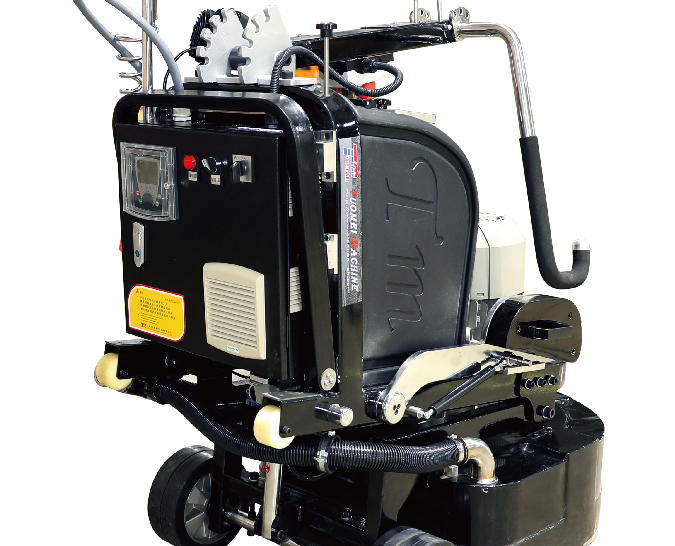

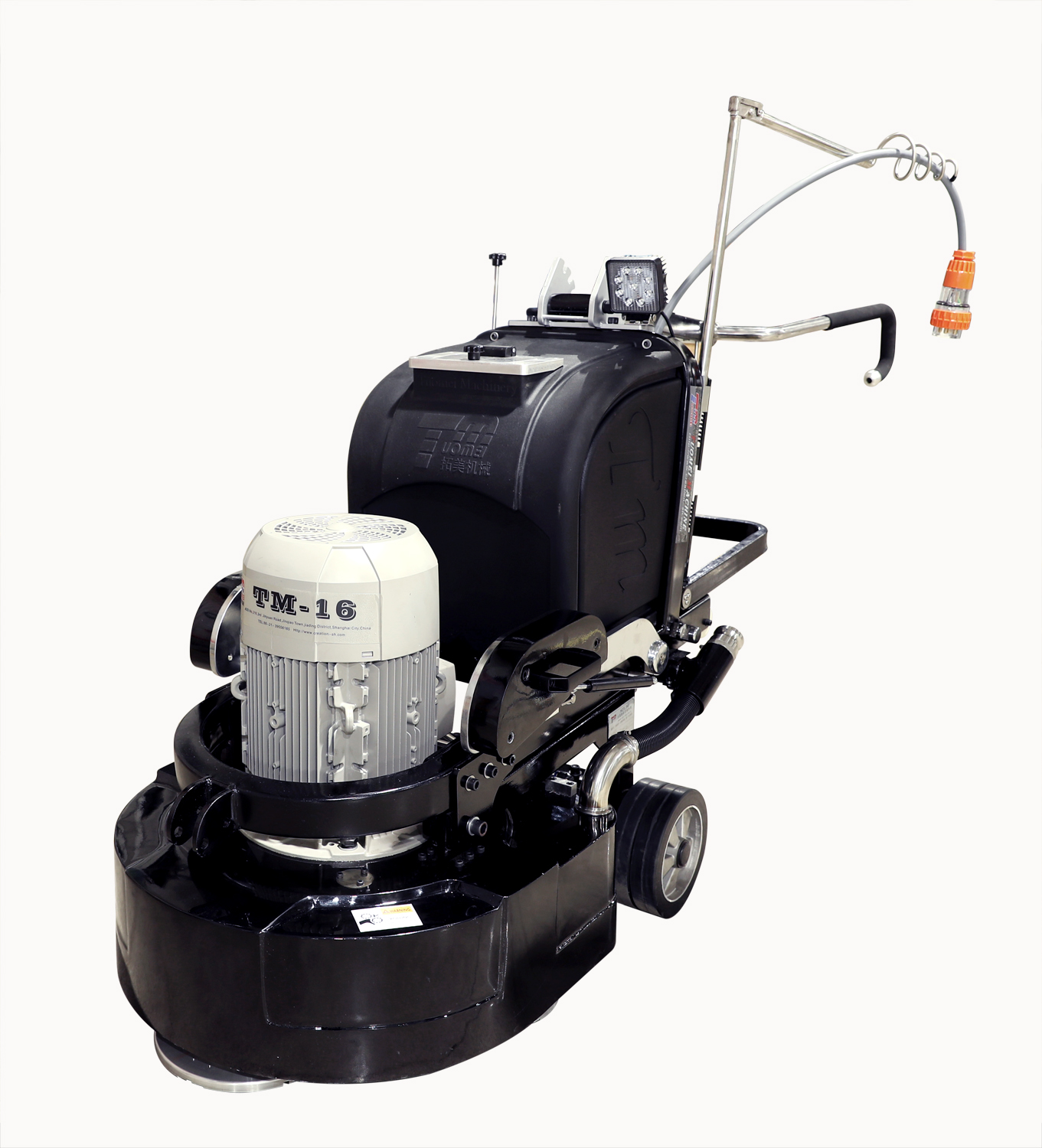

TM-16:Grinding Machine
Born in 2007, TM-16 is the first global unique designed double level gear-driving grinding machine which acknowledges fixed speed proportion grinder operation mode. This machine has large working area with high working efficiency and can effectively save enterprise human cost. It leads the healthy and orderly development of floor industry.

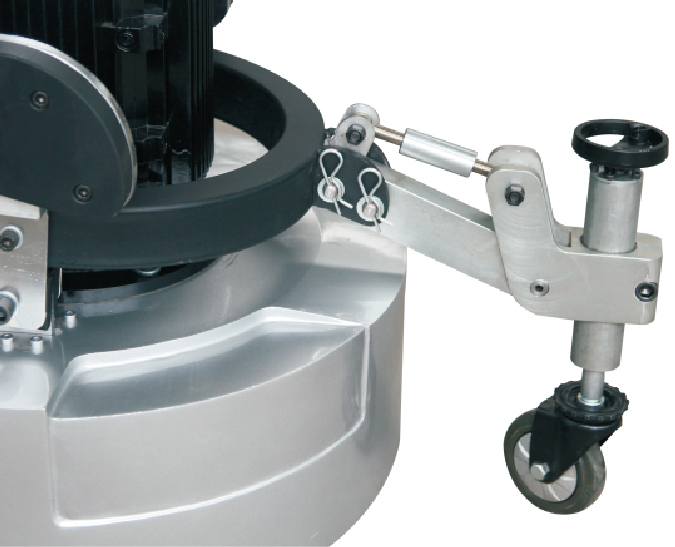

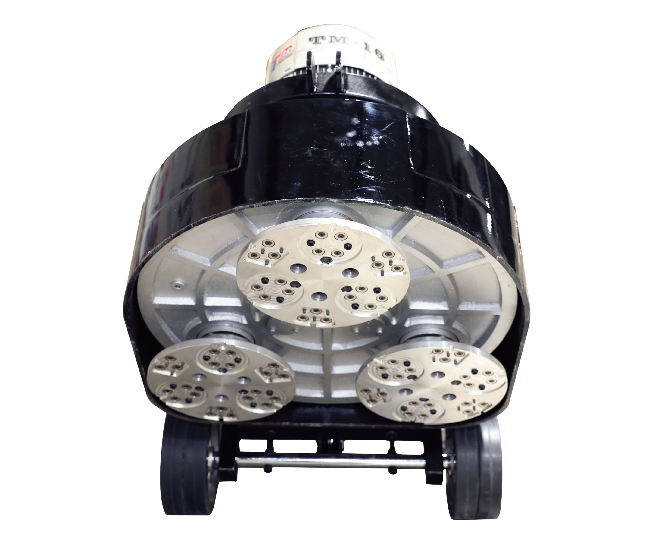

TM-16 is a grinding machine designed for large scale construction. Equipped with high power motor and convert device, it can satisfy large scale concrete construction requirements. With electric grinder pressure adjusting device, it can satisfy different construction step requirement to be used in floor polishing and surface preparation. This machine can fix large hole double vacuum cleaner to satisfy dustless construction requirement. Three head planetary and cushion grinder leveling device. The grinder rotation speed can be up to 1200 rpm. Different grinder attachment can choose different metal segments and pads to largely increase work efficiency and reduce construction cost.
- Technical parameters
- Description
- Applications
- Projects
TM-16 technical parameters
MOTOR |
11KW 15HP |
INVERTER |
15KW 20HP |
VOLTAGE |
3 phase 220V/380V/460V |
AMPERE |
20A-30A |
WATER TANK |
30L |
WORKING WIDTH |
31.50 in / 800 mm |
WEIGHT |
1058 lbs / 480 kg |
LENGTH |
53.54 in / 1360 mm |
WIDTH |
31.50 in / 800 mm |
HEIGHT |
51.18 in / 1300 mm |
REVOLUTION |
0~150 rpm |
ROTATION |
0~1200 rpm |
TM-16:Grinding Machine
Born in 2007, TM-16 is the first global unique designed double level gear-driving grinding machine which acknowledges fixed speed proportion grinder operation mode. This machine has large working area with high working efficiency and can effectively save enterprise human cost. It leads the healthy and orderly development of floor industry.
TM-16 is a grinding machine designed for large scale construction. Equipped with high power motor and convert device, it can satisfy large scale concrete construction requirements. With electric grinder pressure adjusting device, it can satisfy different construction step requirement to be used in floor polishing and surface preparation. This machine can fix large hole double vacuum cleaner to satisfy dustless construction requirement. Three head planetary and cushion grinder leveling device. The grinder rotation speed can be up to 1200 rpm. Different grinder attachment can choose different metal segments and pads to largely increase work efficiency and reduce construction cost.
