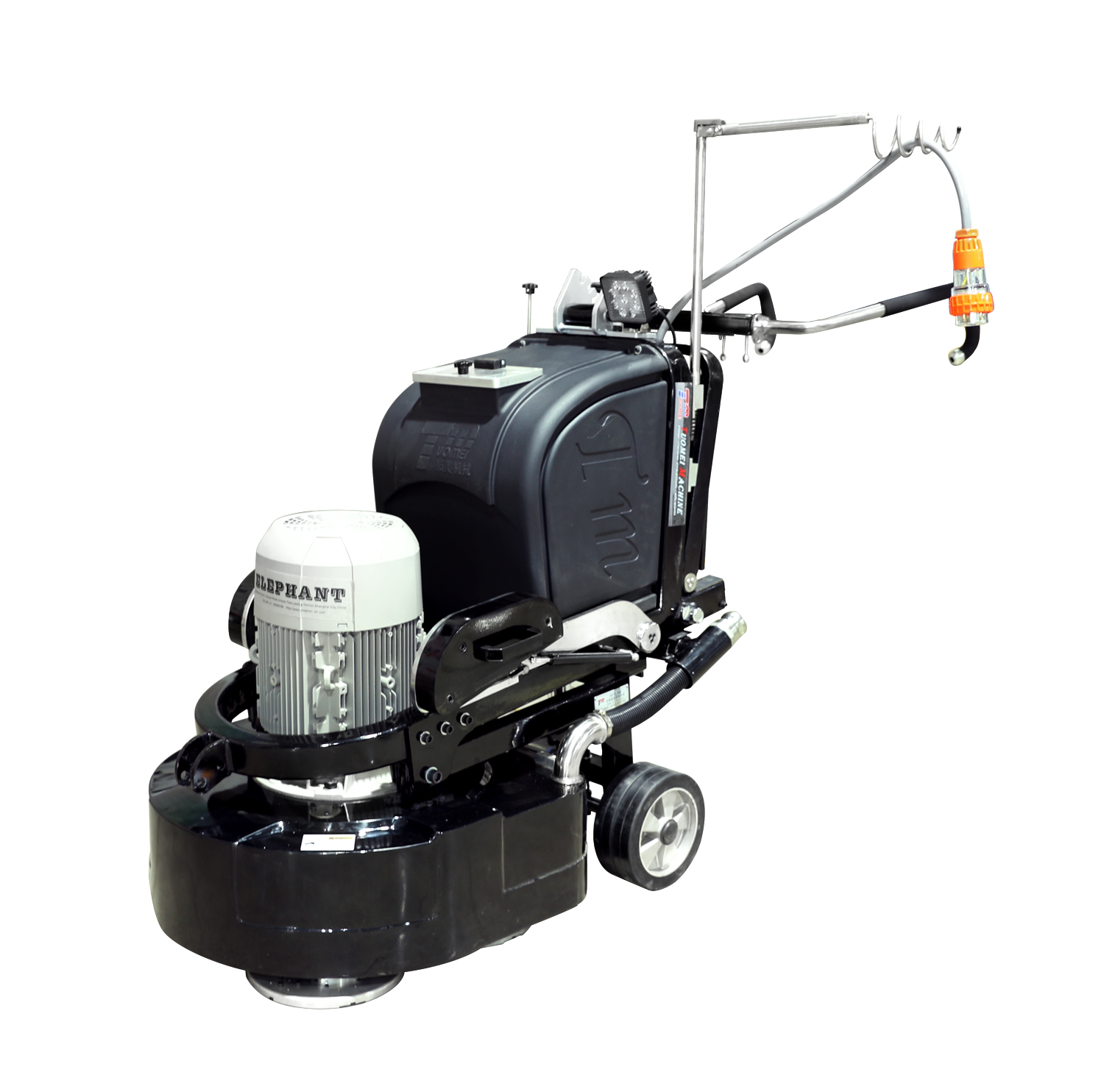

TM-ELEPHANT :Grinding Machine
Born in 2009, TM-Elephant acknowledges new aspect design for full gear-driving four rotation planetary grinder. To ensure the construction efficiency, meanwhile, it can further improve construction standard and enhance the machine function of higher standard to meet different construction requirement market home and abroad and widen market development direction. It gives high quality promise for China-made machine creating brand on international arena.

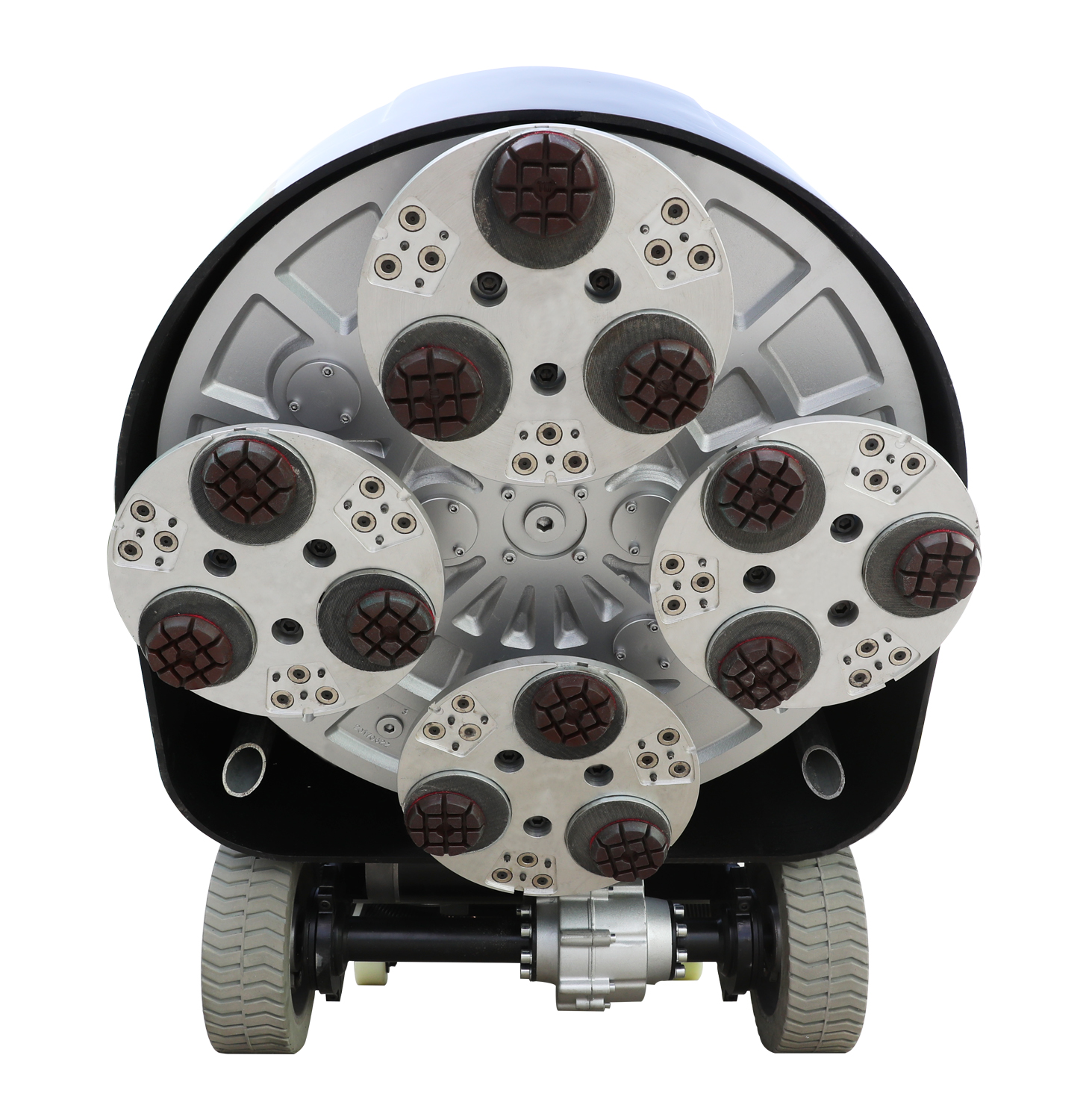

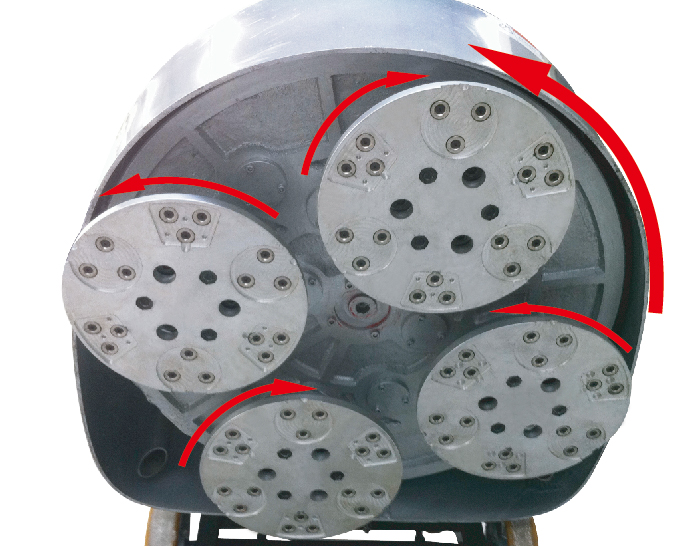

TM-ELEPHANT is a large-scale integrated grinding and polishing equipment and is one of our company patent products. It uses all gear rotation mode and high-power motors, which makes the machine reliability and grind forceful. At the same time the machine revolution leads four grinding heads running in different directions, offsets the traction effectively between the grinding head to make the operation smoothly and easily. The same work area between the two grinding head enhances the scope of grinding. It can be fitted with 20 different abrasive pads to make the operation more effectively.
- Technical parameters
- Description
- Applications
- Projects
TM-ELEPHANT technical parameters
MOTOR |
11KW 15HP |
INVERTER |
15KW 20HP |
VOLTAGE |
3 phase 220V/380V/460V |
AMPERE |
20A-30A |
WATER TANK |
30L |
WORKING WIDTH |
31.50 in / 800 mm |
WEIGHT |
1433 lbs / 650 kg |
LENGTH |
61.02 in / 1550 mm |
WIDTH |
31.50 in / 800 mm |
HEIGHT |
42.91 in / 1090 mm |
REVOLUTION |
0~150 rpm |
ROTATION |
0~1200 rpm |
FLOOR GRINDING/POLISHING MACHINE
Born in 2009, TM-Elephant acknowledges new aspect design for full gear-driving four rotation planetary grinder. To ensure the construction efficiency, meanwhile, it can further improve construction standard and enhance the machine function of higher standard to meet different construction requirement market home and abroad and widen market development direction. It gives high quality promise for China-made machine creating brand on international arena.
TM-ELEPHANT is a large-scale integrated grinding and polishing equipment and is one of our company patent products. It uses all gear rotation mode and high-power motors, which makes the machine reliability and grind forceful. At the same time the machine revolution leads four grinding heads running in different directions, offsets the traction effectively between the grinding head to make the operation smoothly and easily. The same work area between the two grinding head enhances the scope of grinding. It can be fitted with 20 different abrasive pads to make the operation more effectively.
