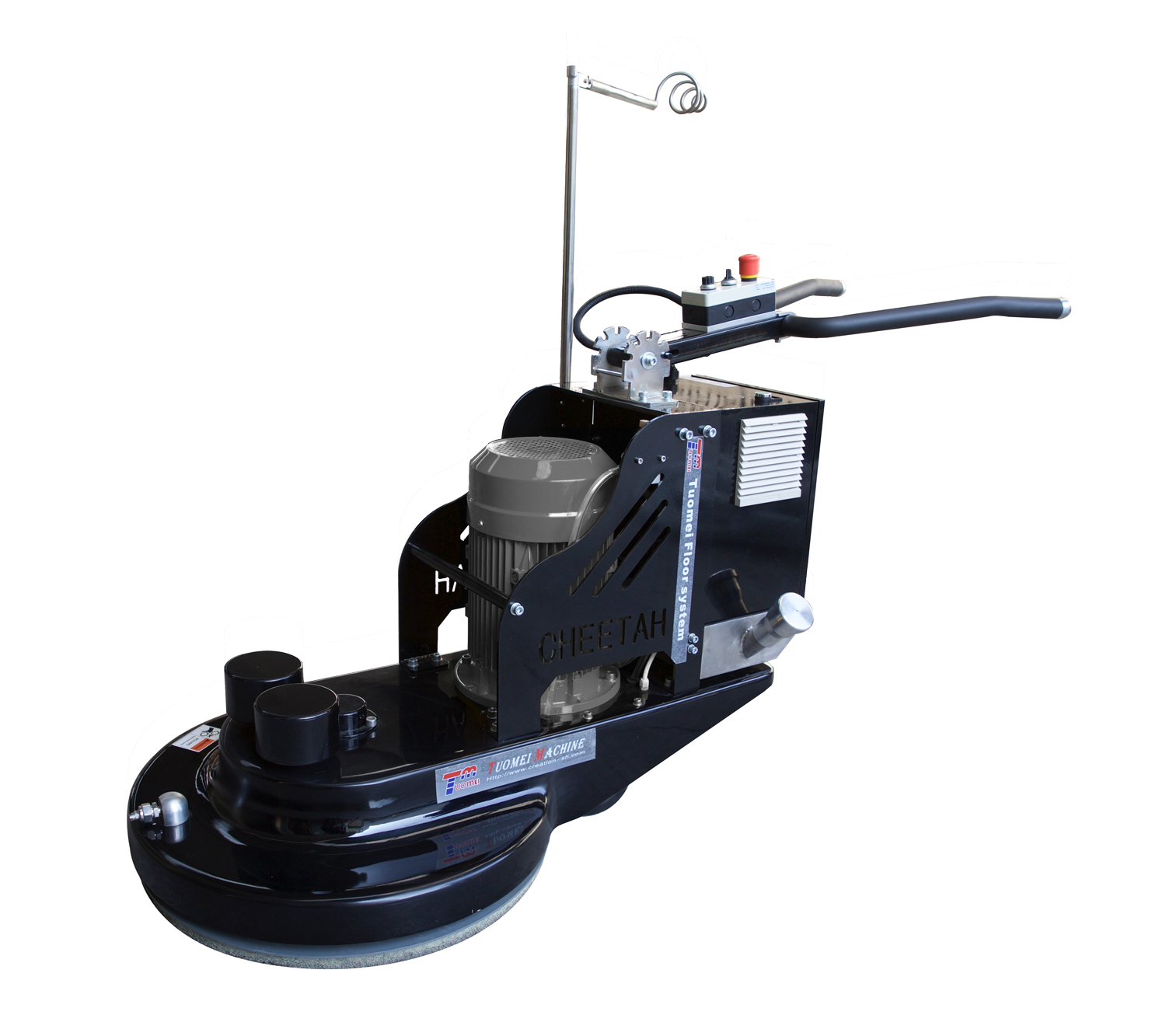

TM-CHEETAH:High Speed Polishing Equipment

      TM-CHEETAH was born in 2011, is China's first large expansion high speed ground treatment equipment. Compared to traditional construction operations, increase several times of the effectiveness, substantially save labor costs and improve the ground table light effect. Since of the amazing efficiency, the machine is named CHEETAH. Not only the machine can be used in later period polishing treatment, equipped with special polishing pads, but also can be better used to grind and polish the ground that is low ground flatness requirements. It marks that Tuomei company provides with the serialized ground handling solutions equipments.


      TM-CHEETAH is the high speed polishing equipment, work area 700mm and maximum speed 2500 rpm. Omit 3-4 steps procedures compared to traditional construction and reach the same construction effect. Equipped with special soft polishing pad; only 3 steps procedures can grind and polish the wear resistant floor; Change the defects of uneven explicit surface of traditional construction floor, poor appearance effect, high construction cost and so on. The unique mechanical design can improve the sticking force to the ground during mechanical operation; high efficiency and high speed equipment characteristics; 5-6 times than ordinary machinery and laid the foundation for the new technology of wear resistant floor construction — Grout- protection Construction.


  • Technical parameters
  • Description
  • Applications
  • Projects


TM-CHEETAH technical parameters



电机  MOTOR

7.5KW 10HP

变频INVERTER

11KW 15HP

电压  VOLTAGE

3 phase 220V/380V/460V

安培  AMPERE

16-20A

工作扩度  WORKING WIDTH

27.56 in / 700 mm

机器重量  WEIGHT

386 lbs / 175 kg

机器长度  LENGTH

46.85 in / 1190 mm

机器宽度  WIDTH

27.56 in / 700 mm

机器高度  HEIGHT

41.34 in / 1050 mm

磨头自转  ROTATION

0~2500 rpm

      TM-CHEETAH was born in 2011, is China's first large expansion high speed ground treatment equipment. Compared to traditional construction operations, increase several times of the effectiveness, substantially save labor costs and improve the ground table light effect. Since of the amazing efficiency, the machine is named CHEETAH (Cheetah). Not only the machine can be used in later period polishing treatment, equipped with special polishing pads, but also can be better used to grind and polish the ground that is low ground flatness requirements. It marks that Tuomei company provides with the serialized ground handling solutions equipments.


      TM-CHEETAH is the high speed polishing equipment, work area 700mm and maximum speed 2500 rpm. Omit 3-4 steps procedures compared to traditional construction and reach the same construction effect. Equipped with special soft polishing pad; only 3 steps procedures can grind and polish the wear resistant floor; Change the defects of uneven explicit surface of traditional construction floor, poor appearance effect, high construction cost and so on. The unique mechanical design can improve the sticking force to the ground during mechanical operation; high efficiency and high speed equipment characteristics; 5-6 times than ordinary machinery and laid the foundation for the new technology of wear resistant floor construction — Grout- protection Construction.
