Location:Home > Products > Laser System Machines > laser grinding machine > TM-LASER CAMEL:LASER MILLING GRINDER

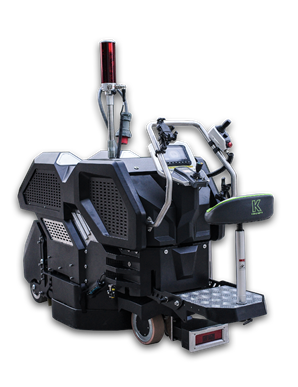

TM-LASER CAMEL:LASER MILLING GRINDER

TM-LASER CAMEL is the world's first laser milling grinder. During the 20 years of our development, we have been focusing on the issue of floor flatness, hoping to solve the floor flatness effectively through the strength of research and development. This is a long process for TM company, from China first concrete laser screed machine, to the first laser grinding machine. Today we solemnly launched for you the world's first laser milling grinder.
This machine can effectively solve the problem of flatness, and at the same time, it has intelligent detection and efficient construction. We can solve the problem of high-shelf aisle, AGV trolley and hovercraft handling floor flatness through this equipment, and meet its operating standards. Through the laser milling grinder, we can be directly applied to the floor treatment, saving the second leveling of the pavement work.
Also we can be applied to the treatment of the base surface, to solve the problem of the terrazzo base flatness, improve the decorative effect of the floor. The birth of TM-LASER CAMEL will lead the floor industry to higher floor flatness standard.
1819
  • Technical parameters
  • Description
  • Applications
  • Projects

TM -CAMEL Technical Parameters

MOTOR

18.5KW 25HP

VOLTAGE

3 phase 220V/380V/460V

AMPERE

30A-40A

WORKING WIDTH

25.20 in / 640 mm

MILLING DEPTH

0-1.18 in / 0-30 mm

DISTANCE TO WALL

1.57 in / 40 mm

WEIGHT

2568 lbs /1165 kg

LENGTH

87.87 in / 2232 mm

WIDTH

30.70 in / 780 mm

HEIGHT

44.80 in / 1138 mm

REVOLUTION

180 rpm

ROTATION

1100rpm
